Key Features
- Accurately locates anchor bolts for Strong-Wall high-strength wood shearwalls
- Standard templates are reversible and can be used for interior or exterior applications
- Variety of configuration options to accommodate common concrete foundation types
Applications

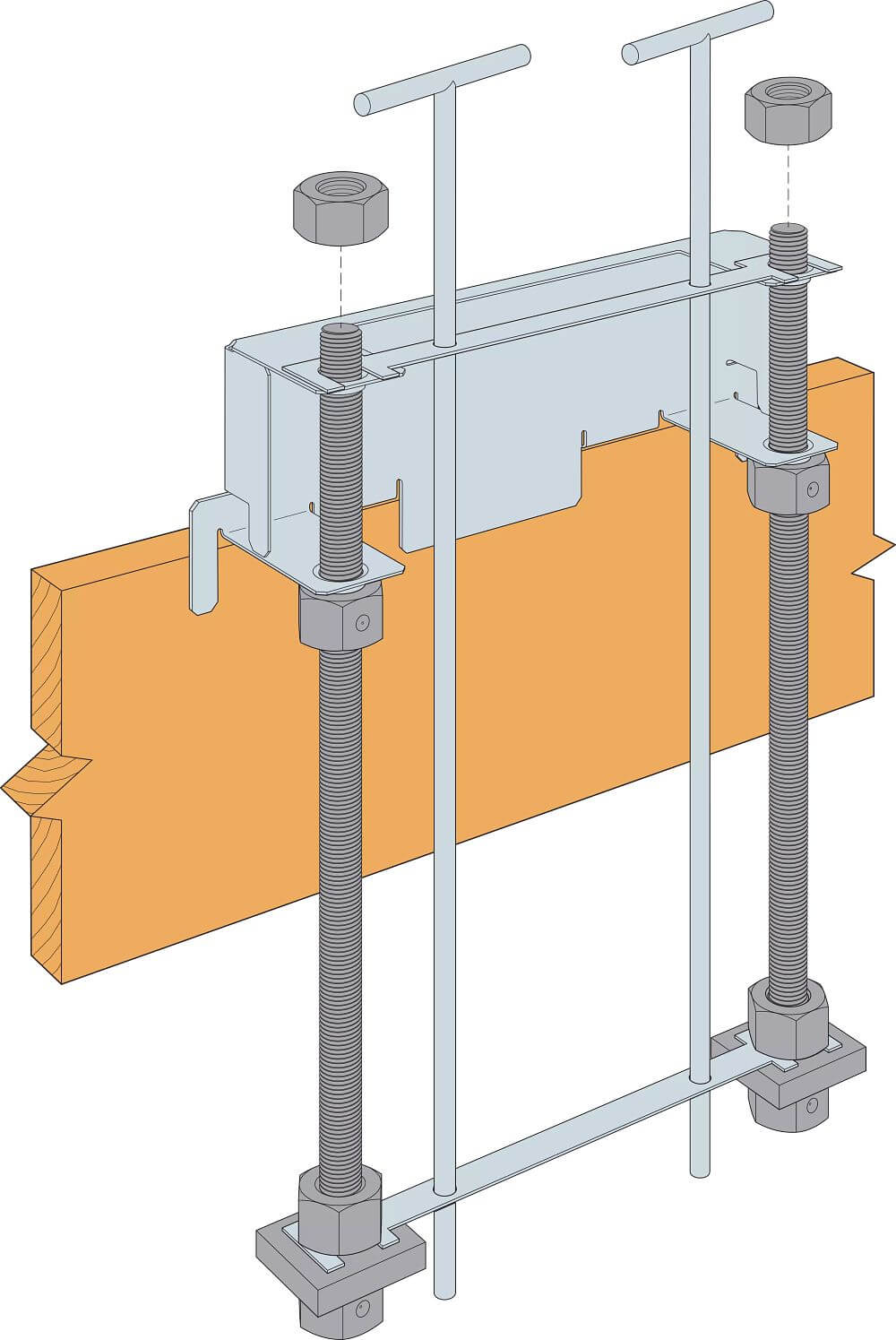

- RT — standard model used for exterior and interior (reversed) installations at the top of the form
- RTPF — panel form model used for installations in panel forms, typically below the top of the form

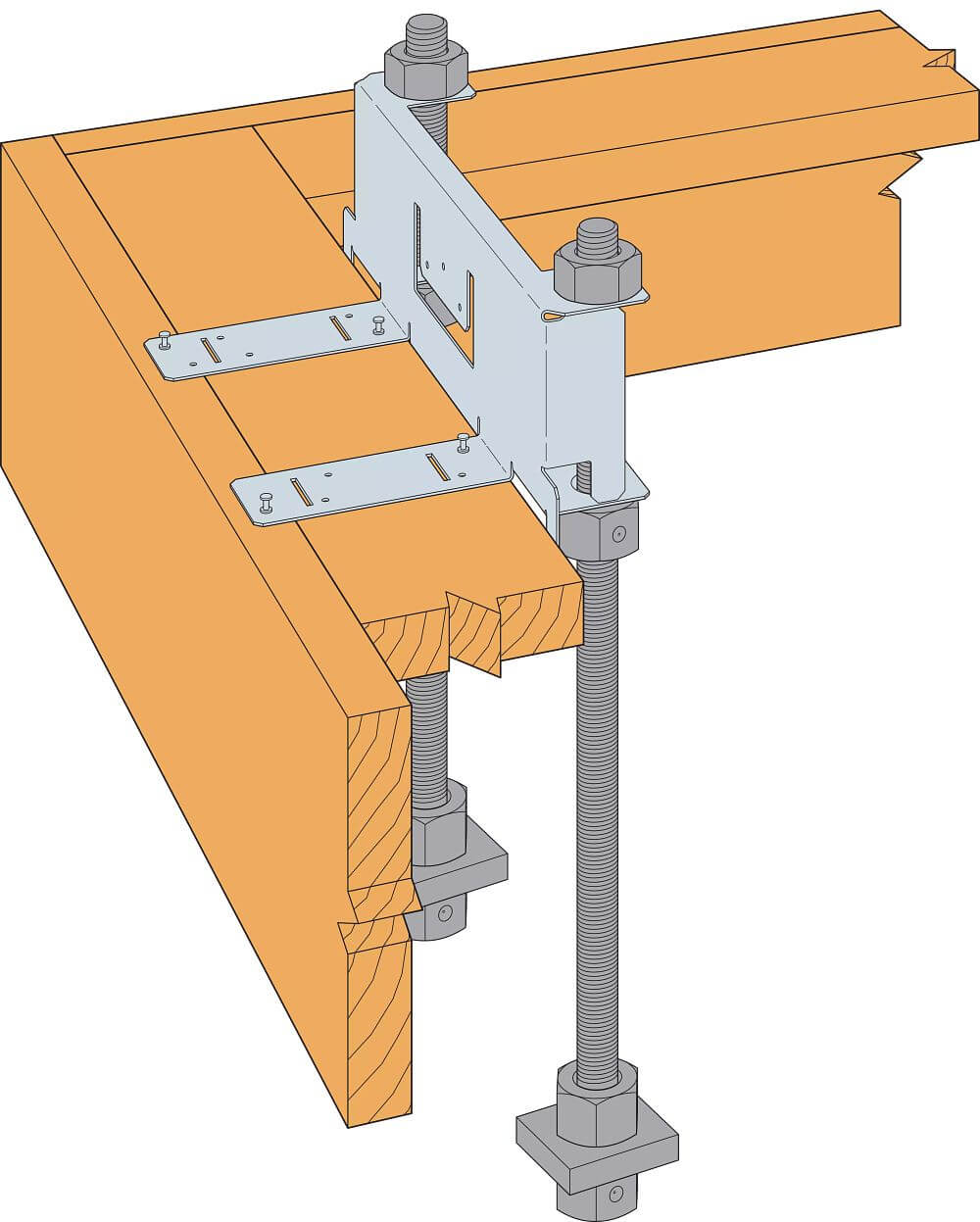

- RTBL — brick ledge model used for brick ledge foundations
- RTEL — extended leg model used for installations where WSWH is flush with the inside face of a 2x6 sill plate
- RTELPF — extended leg model used for panel form installations where WSWH is flush with the inside face of a 2x6 sill plate when concrete is not poured to the top of the form; typically to set anchors into a stemwall or extend down to the footing
Material
- 14 gauge
Finish
- G90 galvanized
