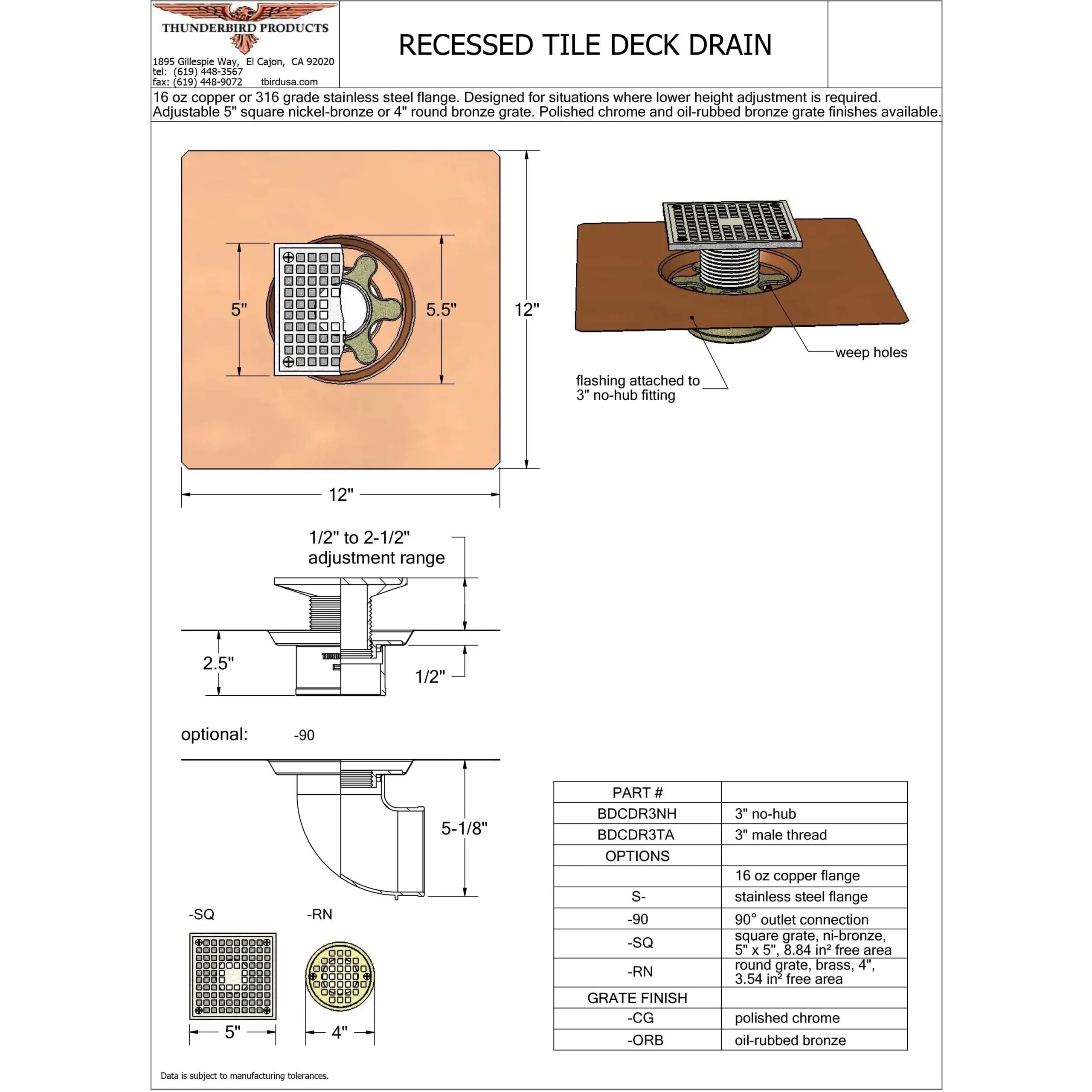

This stainless steel drain is perfect for high-end and commercial applications. The square or round grate is cast from either bronze or nickel-bronze alloy. Great for tile and concrete applications. Strainer can adjust in height from 1/2" to 2-1/2". (Additional Grate Extenders available for purchase) Integrated bowl is 1/2" deep. Weep holes incorporated into the design allow moisture to drain.

• Stainless Steel Recessed Tile Deck Drain
• 26 gauge 316 grade stainless steel flashing
• Available with optional copper elbow
• 3" Bronze No Hub Fitting
• Two Grates to choose from
  • 5" x 5" Square nickel-bronze grate
  • 4" round bronze grate
• Strainer adjusts from 1/2" to 2-1/2" in height (Additional Grate Extenders available for purchase)
• 1/2" bowl depth
• Manufactured in the USA by Thunderbird Products

Part Numbers
SBDCDR3NHRN	3" No-Hub Stainless Steel Recessed Tile Deck Drain 4" Round Bronze Grate
SBDCDR3NHRN90	3" No-Hub Stainless Steel Recessed Tile Deck Drain with 4" Round Bronze Grate with 90 Degree Copper Elbow
SBDCDR3NHRNCG	3" No-Hub Stainless Steel Recessed Tile Deck Drain with 4" Round Chrome Grate
SBDCDR3NHRNCG90	3" No-Hub Stainless Steel Recessed Tile Deck Drain with 4" Round Chrome Grate with 90 Degree Copper Elbow
SBDCDR3NHRNORB	3" No-Hub Stainless Steel Recessed Tile Deck Drain with 4" Round Oil Rubbed Bronze Grate
SBDCDR3NHRNORB90	3" No-Hub Stainless Steel Recessed Tile Deck Drain with 4" Round Oil Rubbed Bronze Grate with 90 Degree Copper Elbow
SBDCDR3NHSQ	3" No-Hub Stainless Steel Recessed Tile Deck Drain with 5" x 5" Square Nickel Bronze Grate
SBDCDR3NHSQ90	3" No-Hub Stainless Steel Recessed Tile Deck Drain with 5" x 5" Square Nickel Bronze Grate with 90 Degree Copper Elbow
SBDCDR3NHSQCG	3" No-Hub Stainless Steel Recessed Tile Deck Drain with 5" x 5" Square Chrome Grate
SBDCDR3NHSQCG90	3" No-Hub Stainless Steel Recessed Tile Deck Drain with 5" x 5" Square Chrome Grate with 90 Degree Copper Elbow
SBDCDR3NHSQORB	3" No-Hub Stainless Steel Recessed Tile Deck Drain with 5" x 5" Square Oil Rubbed Bronze Grate
SBDCDR3NHSQORB90	3" No-Hub Stainless Steel Recessed Tile Deck Drain with 5" x 5" Square Oil Rubbed Bronze Grate with 90 Degree Copper Elbow
