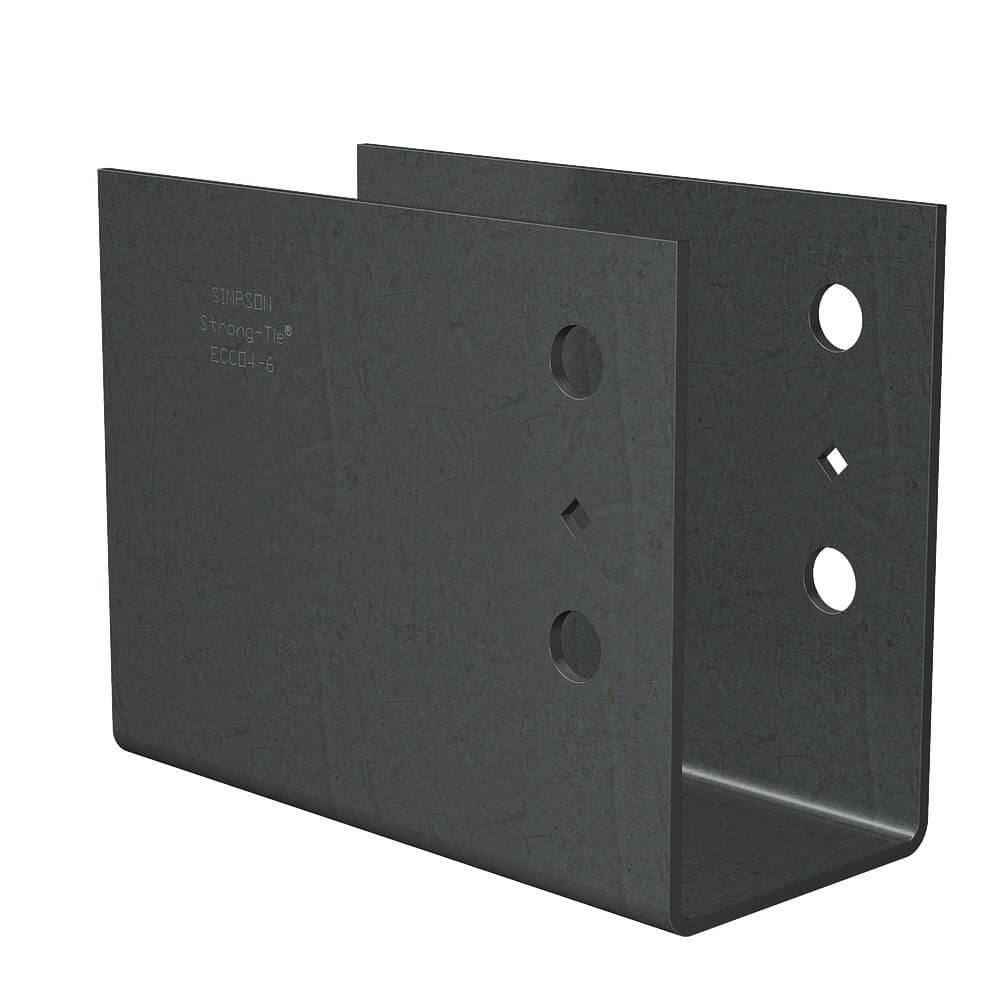

The ECCO is designed to provide strong column-beam connections in end-of-beam applications on top of steel members. The column cap features a design without legs enabling a field-welded attachment to steel columns and beams. The seat of the column cap provides additional surface area for bearing that extends beyond the one side of the column. This helps to distribute the load from the beam and provide support for the connection.
Key Features
- Uplift loads increased for earthquake or wind loading
- Bolt spacing that meets NDS code requirements to ensure optimal performance
- Diamond holes to provide temporary fastening
Material
- ECCO3 1/4 , ECCO4, ECCO4/6, ECCO4.62, ECCO6 — 7 gauge; all others — 3 gauge
Finish
- No coating. Some models available in HDG; see Corrosion Information.
Options
- For special, custom, or rough-cut lumber sizes, provide dimensions.
- ECCO may be ordered for field welding to pipe or other columns. Weld by designer.
