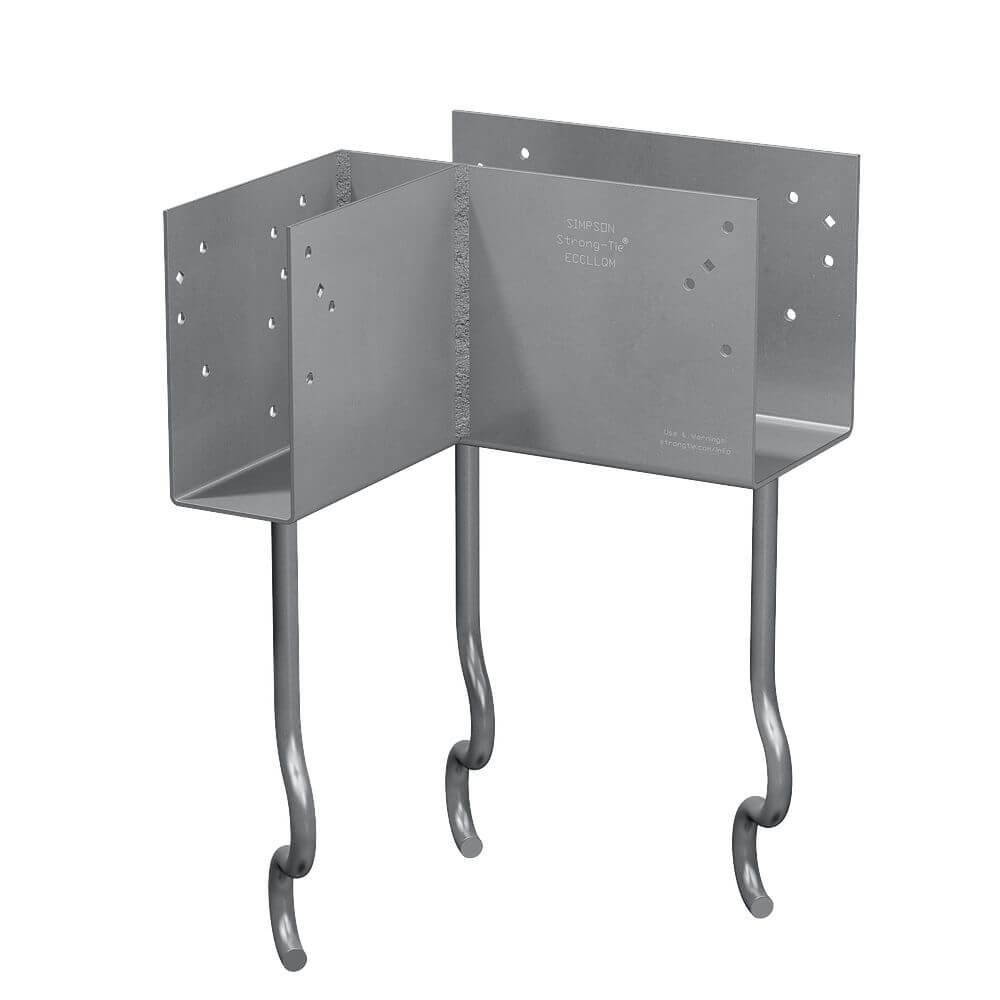

The ECCLQM embedded column cap is designed for use in raised pier foundations and applications where heavy beams rest on concrete or concrete block columns. The heavy-gauge beam seat and unique Simpson Strong-Tie® SSTB® anchor bolts provide the high uplift and lateral resistance needed to help resist high-wind events. The ECCLQM-KT is intended for use at the building corners.
Key Features
- MSTQM straps to make the connection from the ECCLQM to the wall framing
- Screws are configured to provide high uplift design values
- Certified welds for confidence in strength and loading
- SSTB offset allows flush installation to edge of pier
- SSTBs spaced to fit in standard CMU cells
Material
- 7 gauge
Finish
- Column caps — hot-dip galvanized or Simpson Strong-Tie gray paint; strap (MSTQM) — galvanized (ZMAX®)
Options
- Available in widths up to nominal 7-1/8" width.
- For variable widths on side stirrups, specify W3 (3 1/4" to 7 1/8") and add an “X” to the end of the core model name. Example: ECCLQM5.50GX-KT, W3 = 3 5/8".
