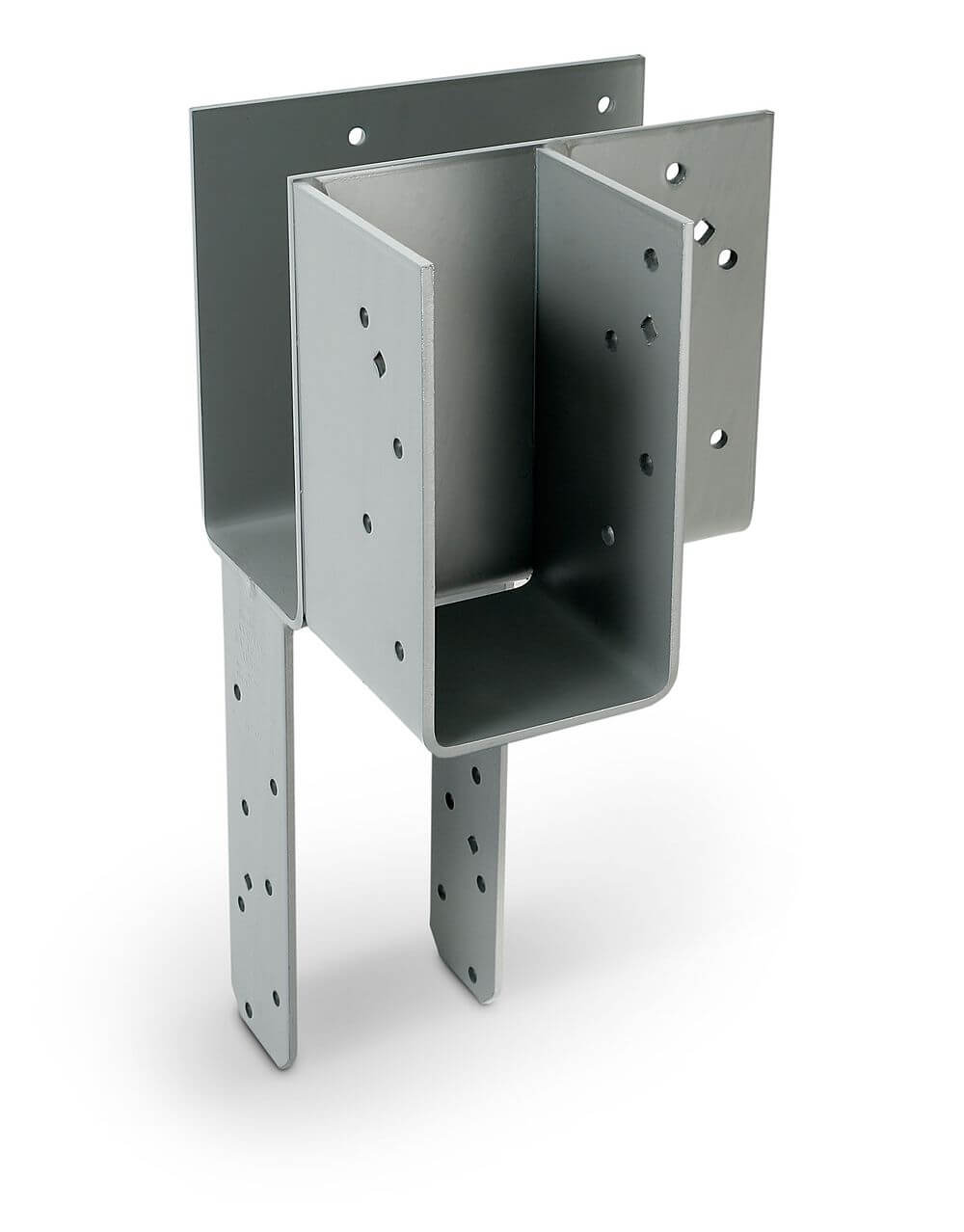

The ECCLQ is designed to provide strong column-beam connections in end-of-beam applications when two beams intersect in an “L” formation on top of a column. When properly installed, this column cap helps to distribute the load from the beams and provides support for the connection. The ECCLQ uses Strong-Drive® SDS Heavy-Duty Connector screws to provide faster installation and a lower profile than standard through bolts and is special-ordered per specific details from the designer to accommodate the many combinations of beam and post sizes.
Key Features
- Screws are configured to provide high uplift design values
- Certified welds for confidence in strength and loading
- Diamond holes to provide temporary fastening
Material
- ECCLQ3, ECCLQ4, ECCLQ4.62, ECCLQ6 — 7 gauge; all others — 3 gauge
Finish
- Simpson Strong-Tie gray paint. Also available in HDG; see Corrosion Information.
