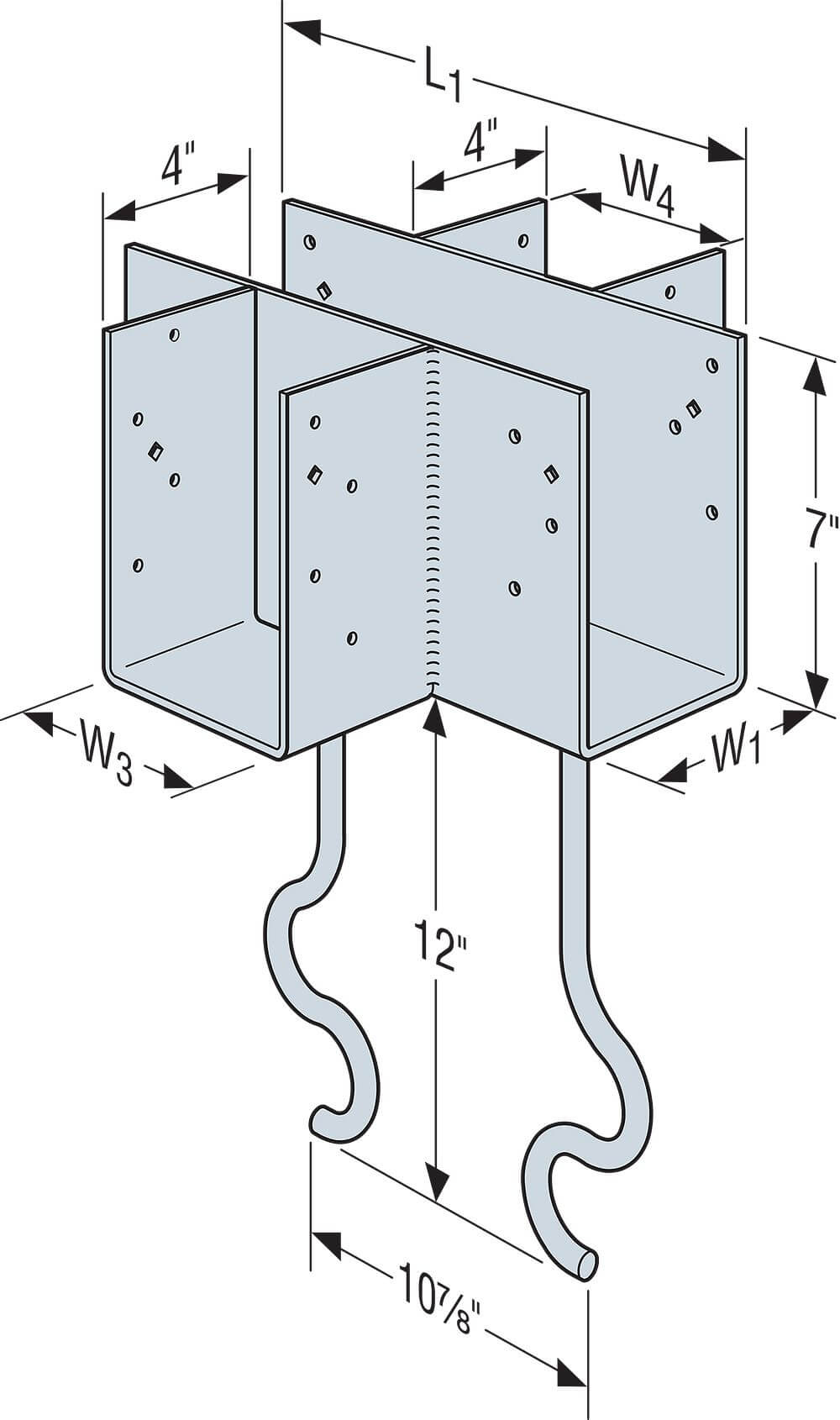

The CCCQM embedded column cap is designed for use in raised pier foundations and applications where heavy beams rest on concrete or concrete block columns. The heavy-gauge beam seat and unique Simpson Strong-Tie® SSTB® anchor bolts provide the high uplift and lateral resistance needed to help resist high-wind events. The CCCQM is for use along a floor support beam with a stirrup on each side of the main channel to accommodate intermediate support beams at 90° angles.
Key Features
- Screws are configured to provide high uplift design values
- Certified welds for confidence in strength and loading
- SSTB offset allows flush installation to edge of pier
- SSTBs spaced to fit standard CMU cells
Material
- 7 gauge
Finish
- Hot-dip galvanized or Simpson Strong-Tie gray paint; see Corrosion Information
