WBT Wall Brace Tensioner

WBT Wall Brace Tensioner
WBT Wall Brace Tensioner
WBT Wall Brace Tensioner
WBT Wall Brace Tensioner
Simpson Strong-Tie

WBT Wall Brace Tensioner

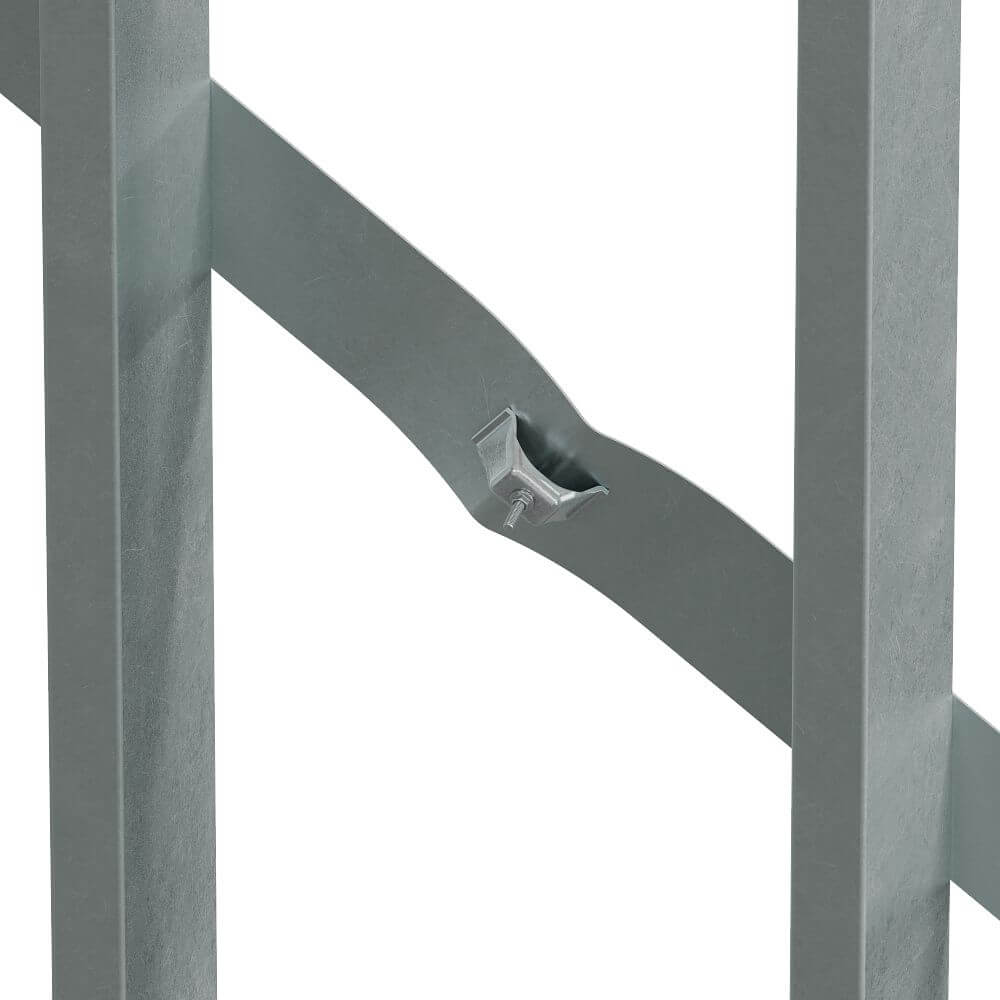

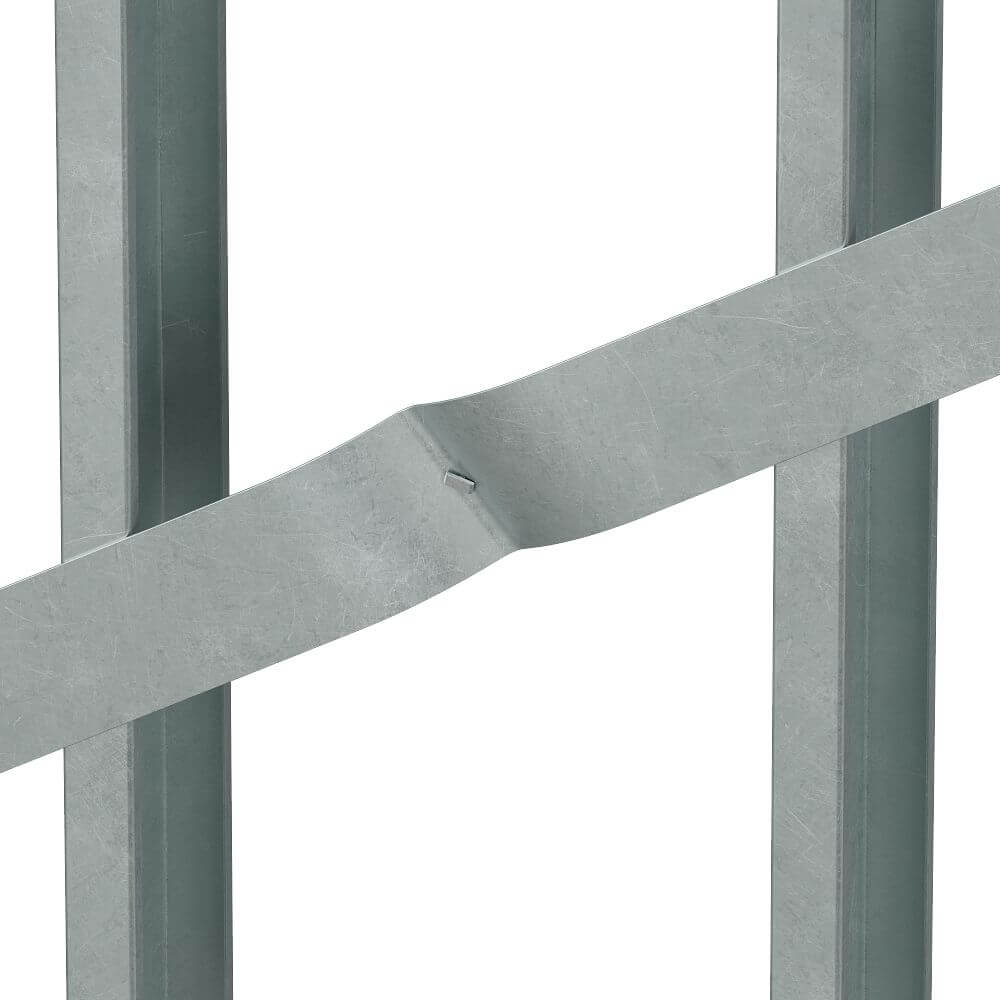

The WBT wall brace tensioner is an easy to use device that can reduce the slack from cold-formed steel (CFS) strap bracing. With the ability to pull as much as 1/2" of slack for a single strap, the WBT can play an important role in reducing deflection in braced wall panels, making installation of cladding easier. Tightening the wall straps is not the easiest jobsite installation task, but this tensioner improves the efficiency of setting the straps to a desired tightness with less hassle.
Key Features
  • Removes up to 1/2" of slack from a single strap
  • Can be used on straps up to 6" wide, 14 ga. (68 mil) thick
  • Max torque on bolt in strap is 115 in.-lb.
  • Compatible with generic strap and Simpson Strong-Tie® CS coil strap
  • Sold in a box of (30) WBT connectors, including (30) bolts and nuts
Material
  • Connector: 10 ga.
  • Bolt: M6 (6mm) ASTM A307 Grade A Class 5
  • Nut: ASTM A563 Grade A
Finish
  • Connector: zinc galvanized, G90
  • Bolt and nut: zinc electroplate (5µm)
