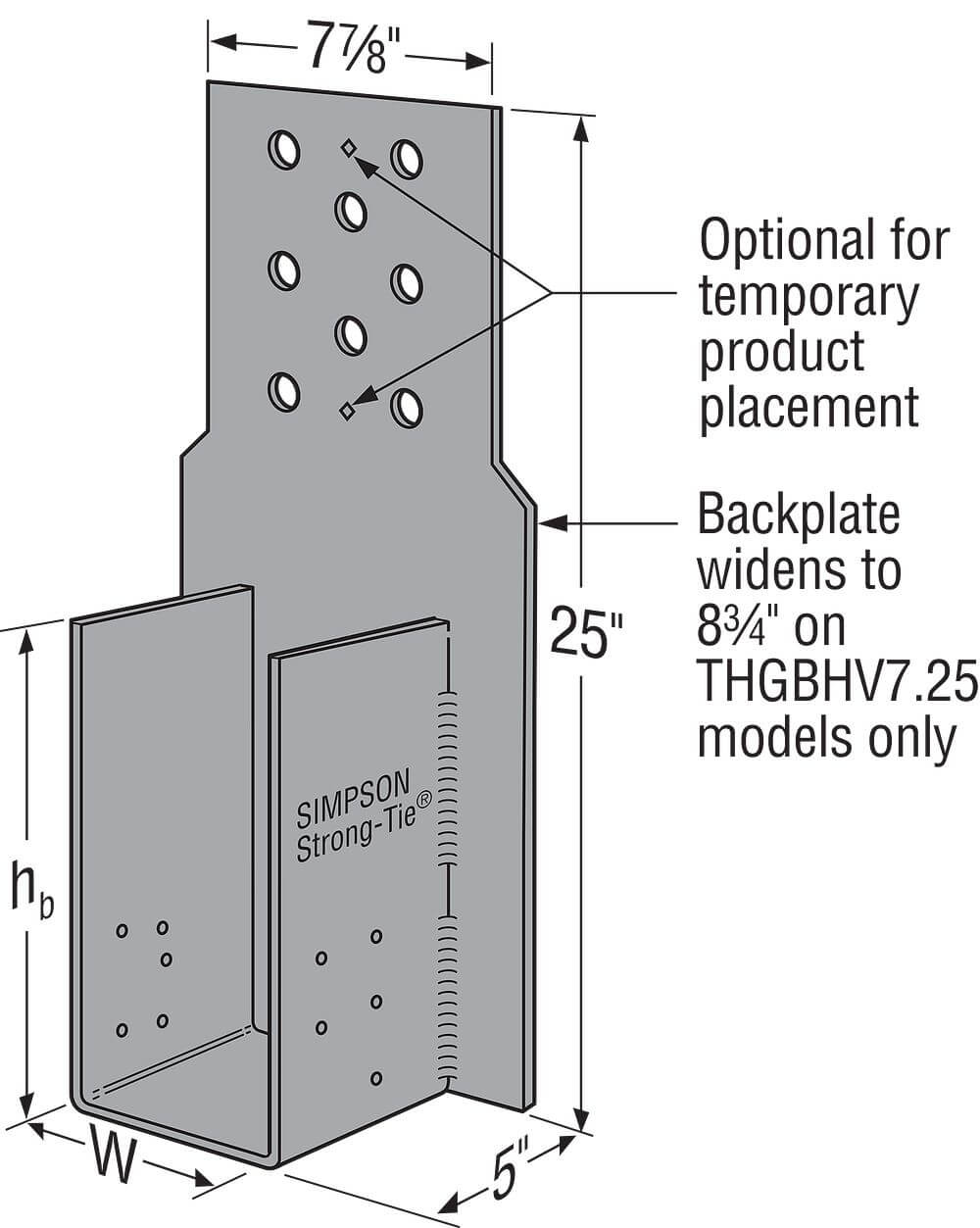

The THGBHV is a high-capacity bolted hanger designed for connecting multi-ply structural composite lumber (SCL) to girder trusses and attaches to a vertical web to support higher loads. This girder truss hanger has options for skewing or dropping the buckets to provide design flexibility for a variety of SCL-to-truss connections.
Key Features
- Can be skewed a maximum of 45°. The maximum allowable download and uplift load for skew is 0.87 of the table load.
- Backplates can be extended to allow for up to a 6" dropped bucket.
- Available in 9″ and 11″ bucket heights to accommodate a range of SCL sizes.
Material
- 3 gauge
Finish
- Simpson Strong-Tie gray paint
Options
- Skewed Seat
- THGBHV hangers can be skewed to a maximum of 45°.
- The maximum allowable download and uplift load for skew is 0.87 of the table load.
- THGBHV backplates can be extended to allow for up to a 6" dropped bucket.
- Allowable loads are 100% of the table loads.
- Order as “X” version, specify the total backplate height, BK_PLT, equal to the hanger height (H) plus the dropped bucket amount (db). Ex: a THGBHV3.62/9 with a 4" dropped bucket would have a total backplate height of 27 1/4".
Dropped Bucket
