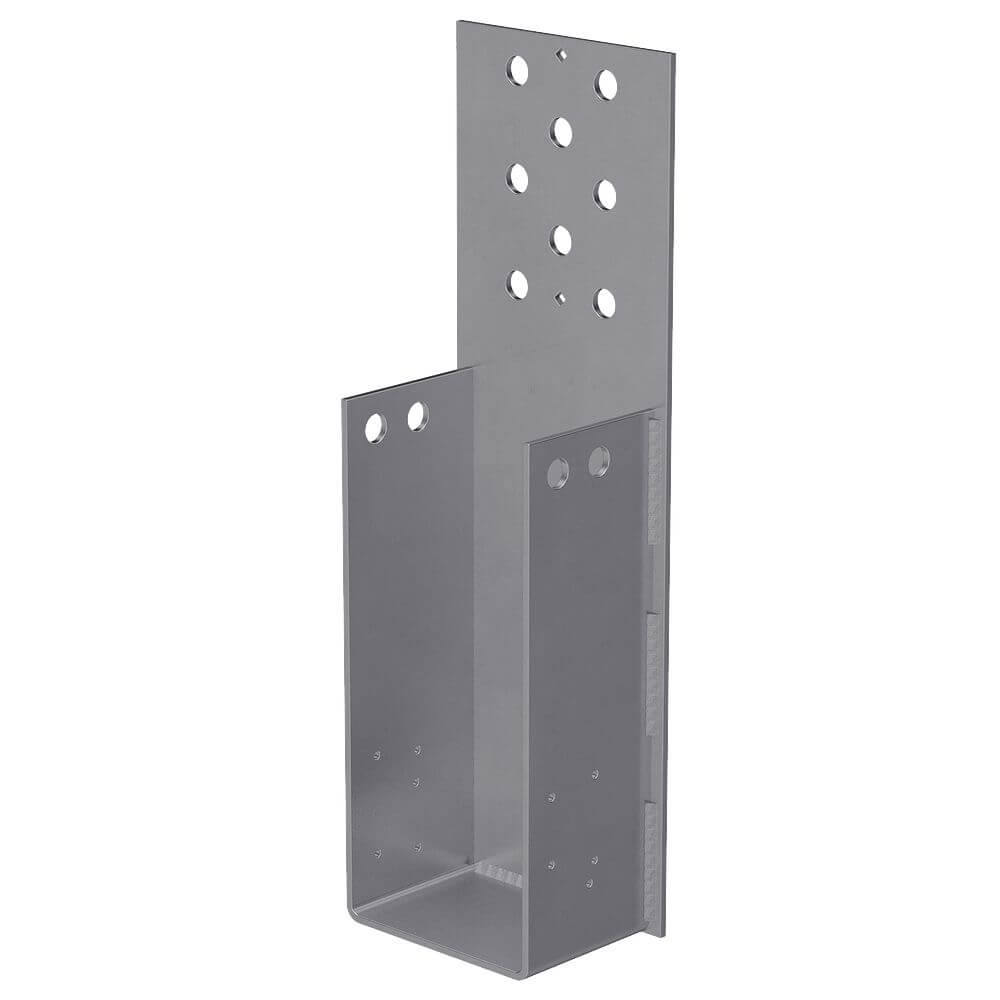

The THGBH is a high-capacity bolted hanger designed for installing multi-ply girder trusses. This welded hanger attaches to a vertical web and is designed with a backplate to support higher loads. The bolted THGBH offers high design load capacities and easy installation.
Key Features
- Can be skewed a maximum of 45°. The maximum allowable down load and uplift load for skew is 0.87 of the table load.
Material
- 3 ga.
Finish
- Simpson Strong-Tie gray paint. HDG available; see Corrosion Information.
Options
- THGBH hangers can be skewed to a maximum of 45°. The maximum allowable down load and uplift load for skew is 0.87 of the table load.
