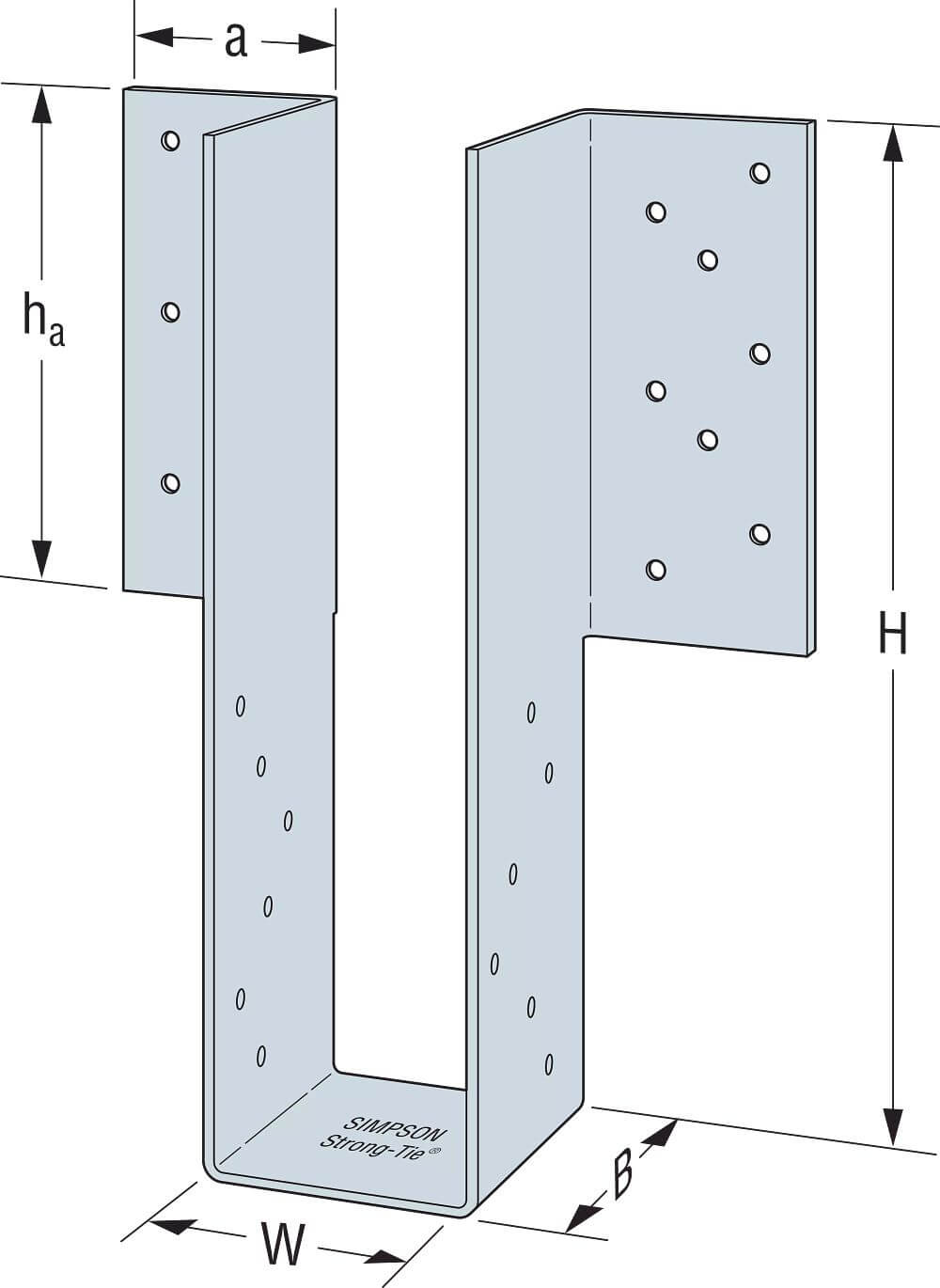

The LGU is a girder hanger designed for use with Strong-Drive® SDS Heavy-Duty Connector screws to make installation fast and easy, without predrilling. This face-mount hanger can be used for retrofit on the framing members after they are temporarily placed in position. The LGU is available skewed up to 45° or with one flange concealed.
Key Features
- Available in many sizes for glulam or structural composite lumber
- LGU-series hangers are fire-resistant F (flame) and T (temperature) rated in Intertek Design No. SST/WPCF 120-01
Material
- 10 gauge
Finish
- Galvanized. Some models available in HDG; see Corrosion Information.
Options
- Hot-dip galvanized available. Order as “X” version; specify HDG.
- Other seat widths available. Order as “X” version; specify width.
- Concealed Flange
- Available with one flange concealed. Specify flange to conceal.
- On LGU with W 3 1/4" or less, flanges cannot be concealed.
- Allowable loads for one-flange-concealed option: 1.00 of published load
- Skewed
- Available skewed up to 45°.
- Concealed flanges are not available with skewed models.
- Apply reduction factors to published loads based on the Reduction Factors for Skewed LGU table below.
