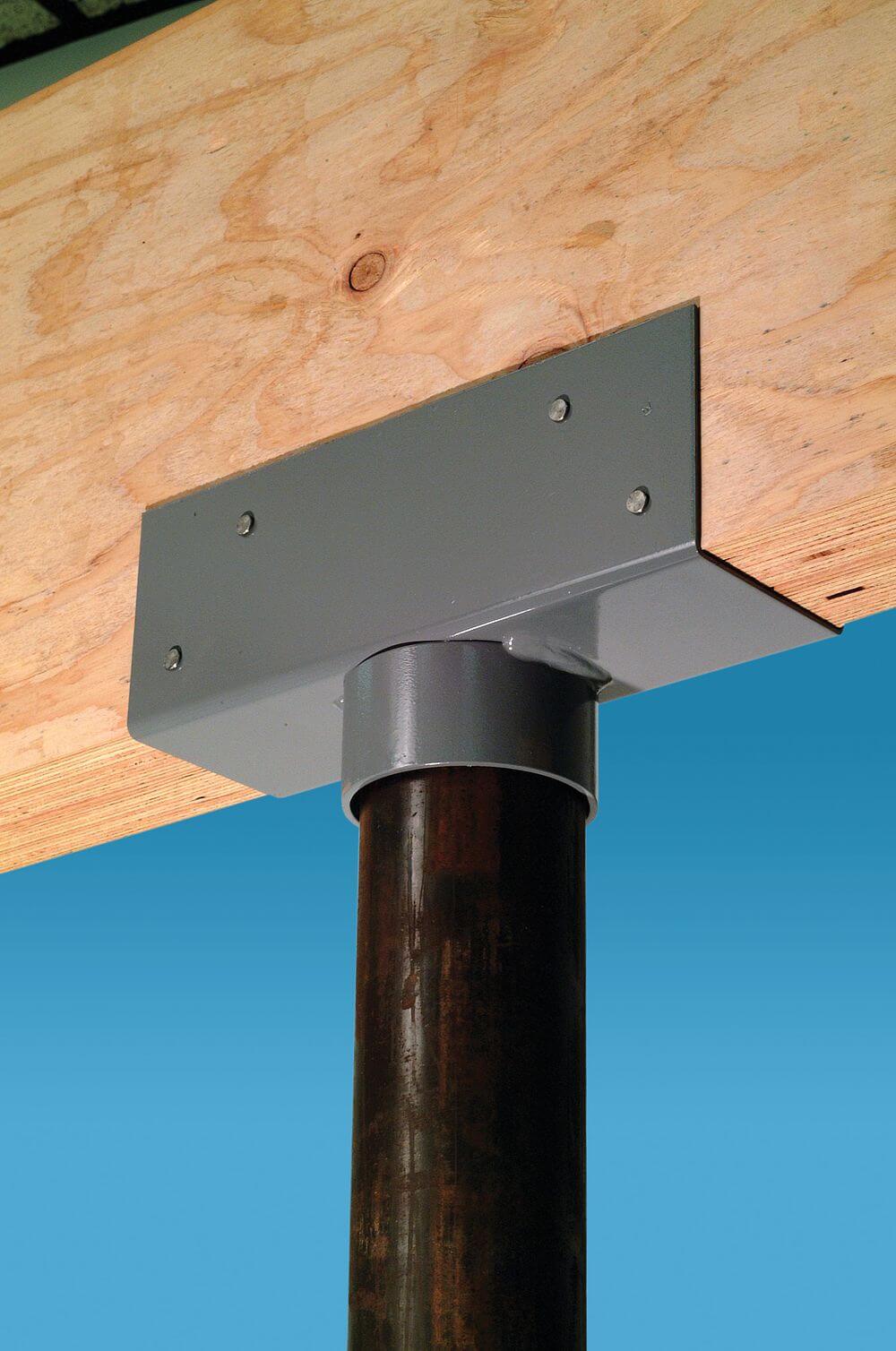

The LCC is designed specifically to be welded to the lally column and attach to the girder. The column cap provides a higher-capacity column-to-beam connection for new or replacement applications. Side plates capture the beam enabling a safer installation process than standard cap plates.
Key Features
- Provides adequate bearing length for larger girder reactions
- Cap fits over column for precise positioning and welding
- Designed specifically to work with 3 1/2″- and 4″-diameter lally columns
Material
- 12 gauge
Finish
- Simpson Strong-Tie® gray paint
