HWSC® Head-of-Wall Slide-Clip Connector
HWSC® Head-of-Wall Slide-Clip Connector
HWSC® Head-of-Wall Slide-Clip Connector
HWSC® Head-of-Wall Slide-Clip Connector
HWSC® Head-of-Wall Slide-Clip Connector
HWSC® Head-of-Wall Slide-Clip Connector
HWSC® Head-of-Wall Slide-Clip Connector
Simpson Strong-Tie

HWSC® Head-of-Wall Slide-Clip Connector

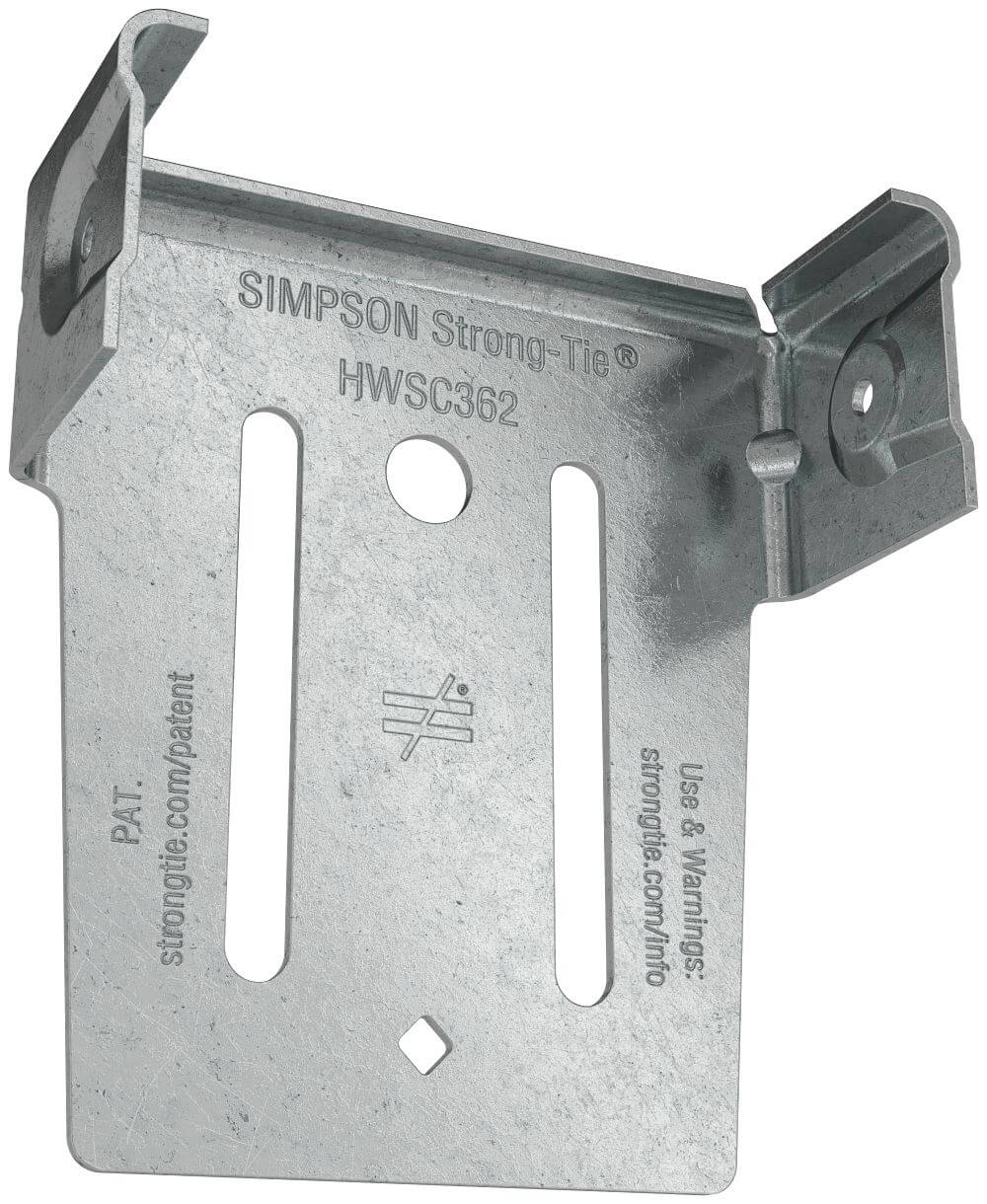

The HWSC head-of-wall slide-clip connector is specifically designed for simplifying the panelization of 3 5/8" and 6" printed studs (e.g., FrameCAD, Arkitech, Howick and Pinnacle). The HWSC is designed to replace slotted track with a typical printed track at head-of-wall conditions. To facilitate installation, a cone-shaped funnel in the clip helps the dimple in the track align properly with the clip’s corresponding dimple to hold it in place while a screw is placed in each flange from the track to the clip. The stud is then slid into position, and the clip is attached to the stud with shoulder screws driven through the center of the fastener slots. As an option, fasten the clip to the stud hole using a single screw to lock the deflection gap in place temporarily during transport and installation. The optional screw is then removed after installation is complete. The HWSC has been assembly-tested to provide optimal strength and performance.
Key Features
  • An edge stiffener has been rolled into the web and flange of the clip for added strength and for ease of fastening of the screws into the clip flange during installation
  • The clip has a unique cone-shaped dimple that guides the track dimple into alignment with the clip, locking the connection in place while a screw is installed into each flange
  • Replaces slotted track that is difficult to panelize with typical printed track
  • Allows up to 1" movement up and down
Material
  •  54 mil (16 ga.), 50 ksi
Finish
  •  Galvanized (G90)
