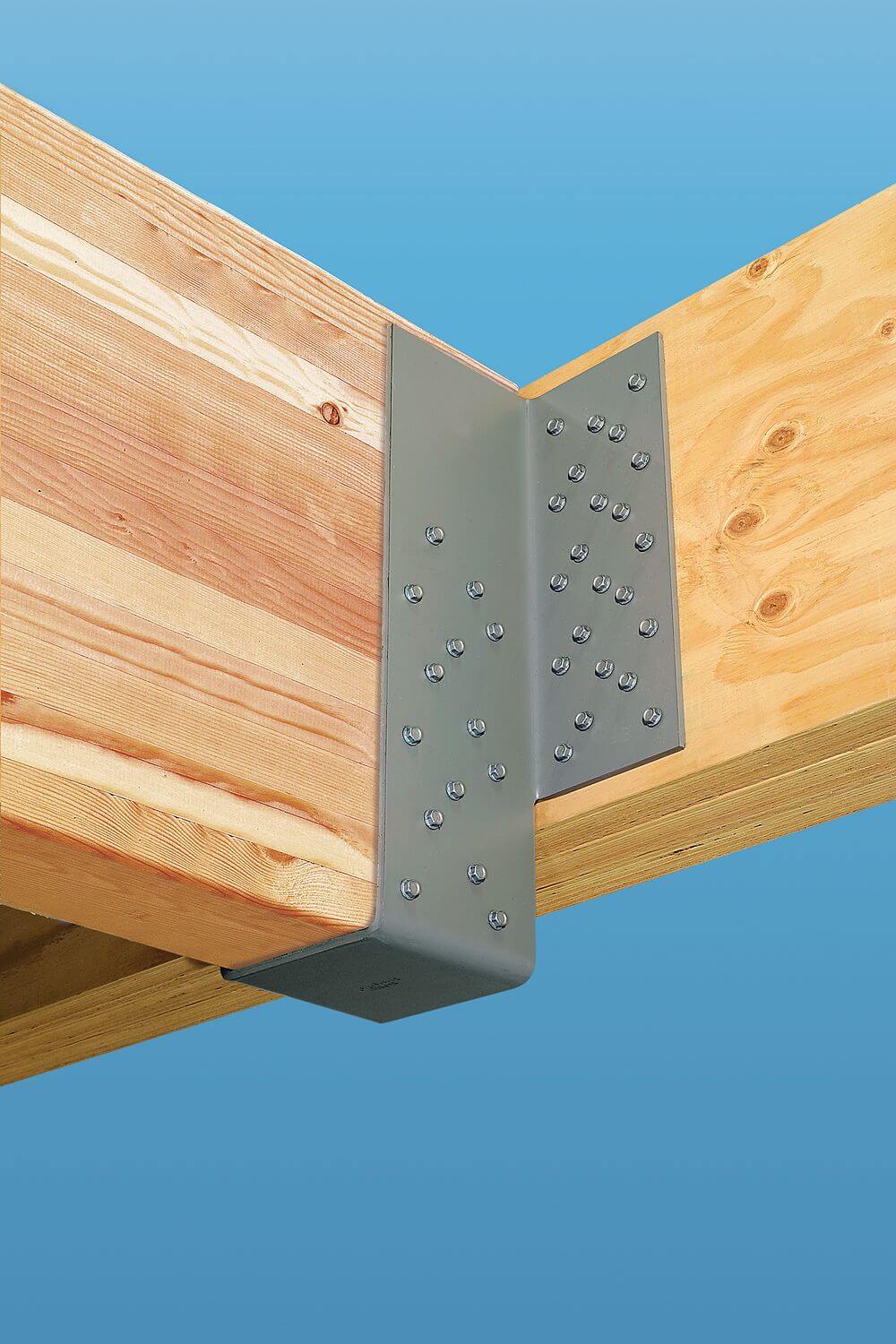

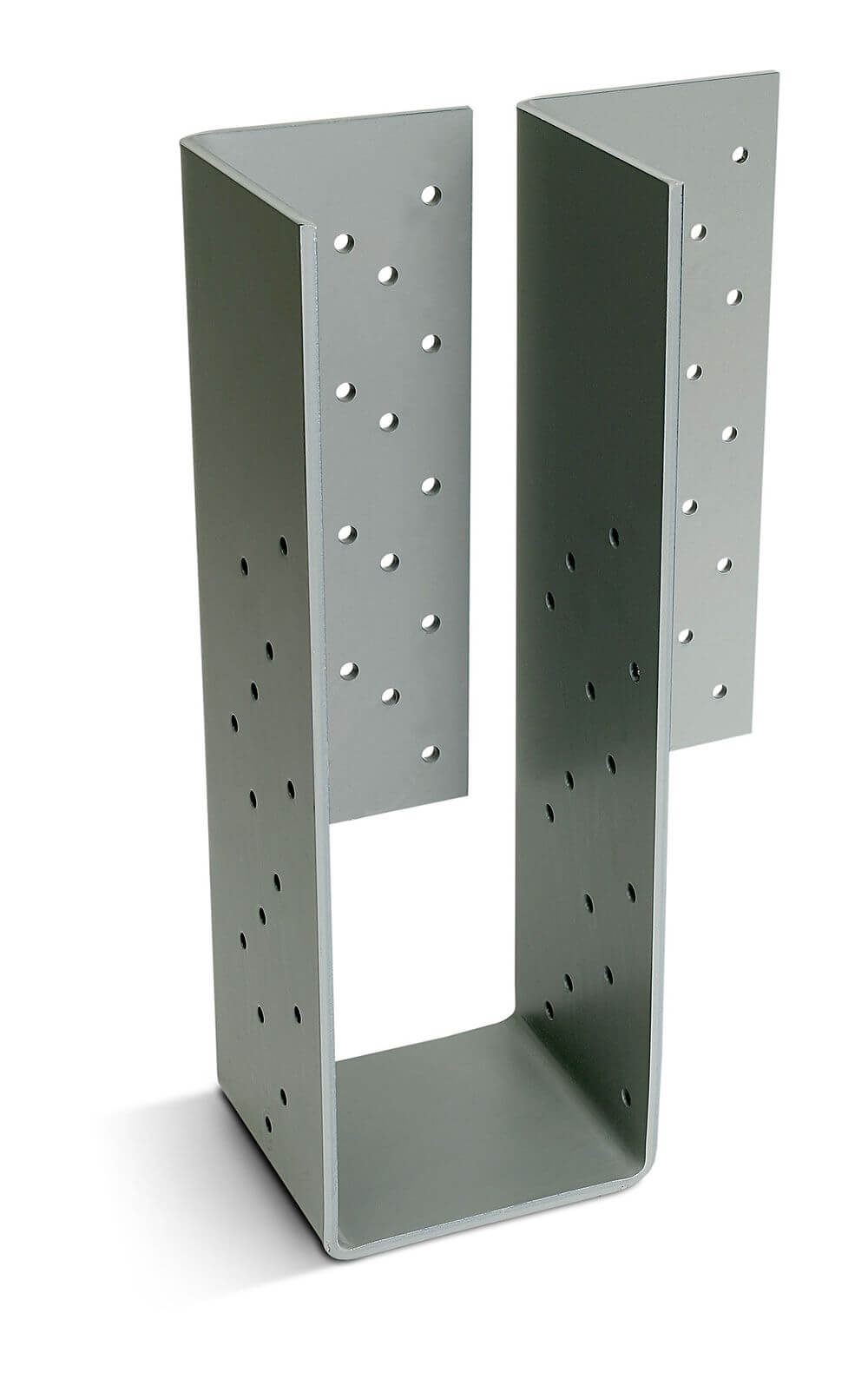

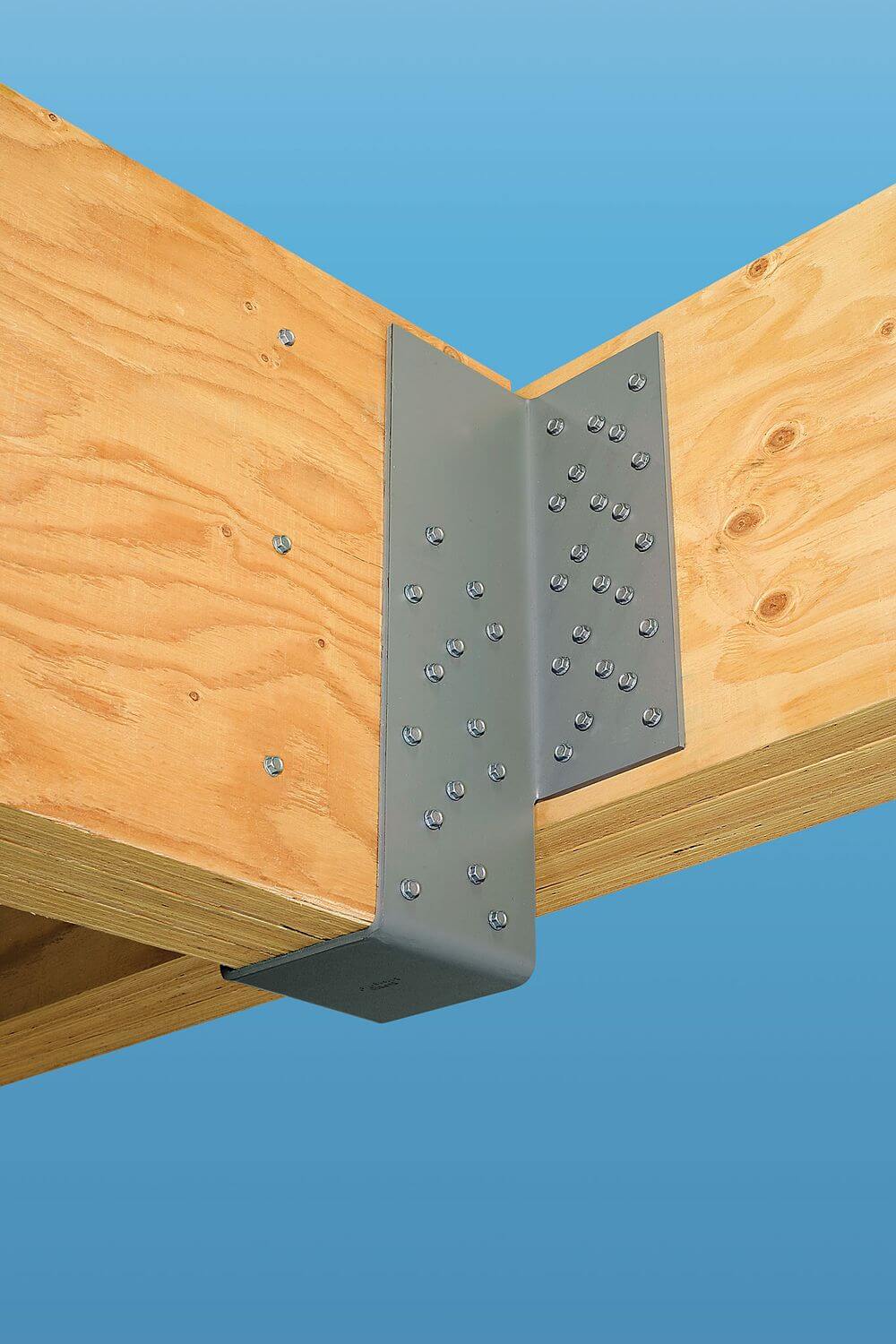

The HHGU is an extra high-capacity girder hanger designed for use with Strong-Drive® SDS Heavy-Duty Connector screws to make installation fast and easy, without predrilling. This face-mount hanger can be used for retrofit on the framing members after they are temporarily placed in position. The HHGU is available with one flange concealed.
Key Features
- Available in many sizes for glulam or structural composite lumber
- HHGU-series hangers are fire-resistant F (flame) and T (temperature) rated in Intertek Design No. SST/WPCF 120-01
Material
- 3 gauge
Finish
- Simpson Strong-Tie gray paint
Options
- Hot-dip galvanized available. Order as “X” version; specify HDG.
- Other seat widths available. Order as “X” version; specify width.
- Concealed Flange
- Available with one flange concealed. Specify flange to conceal.
- Allowable loads for one-flange-concealed option: 0.75 of published load
