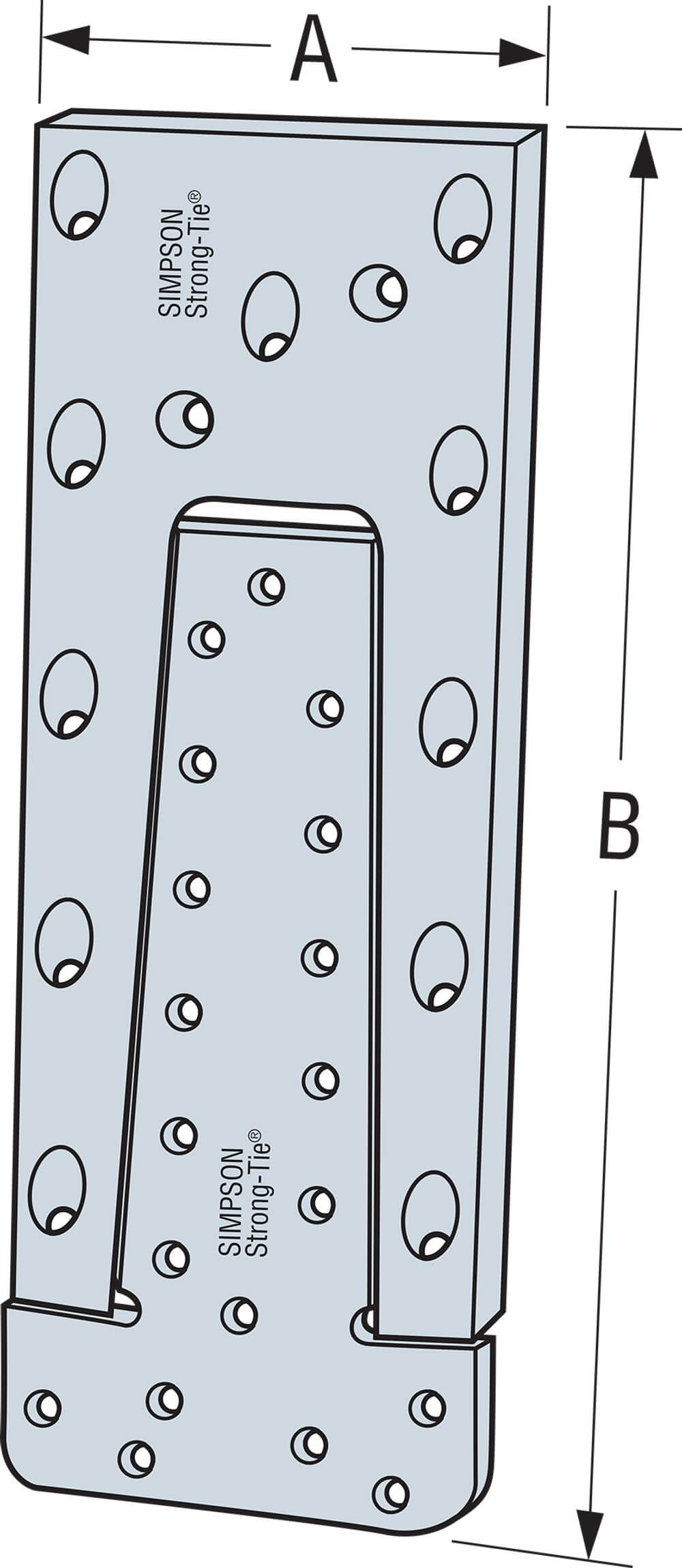

The ETB hidden connector provides a load-tested beam connection without any visible hardware. Interlocking plates are fastened onto each member and lock together for a secure structural connection.
Key Features
- Faster than other time-consuming methods and requires removal of less beam material
- Three sizes address common beam sizes from 4x6 through 6x12
- Connector can be routed into the beam end for a completely flush installation
- Templates available to make accurate installation more efficient
Material
- Plates — Aluminum 6082-T6
Finish
- Plates — none; screws — Dacromet® corrosion-resistant coating
