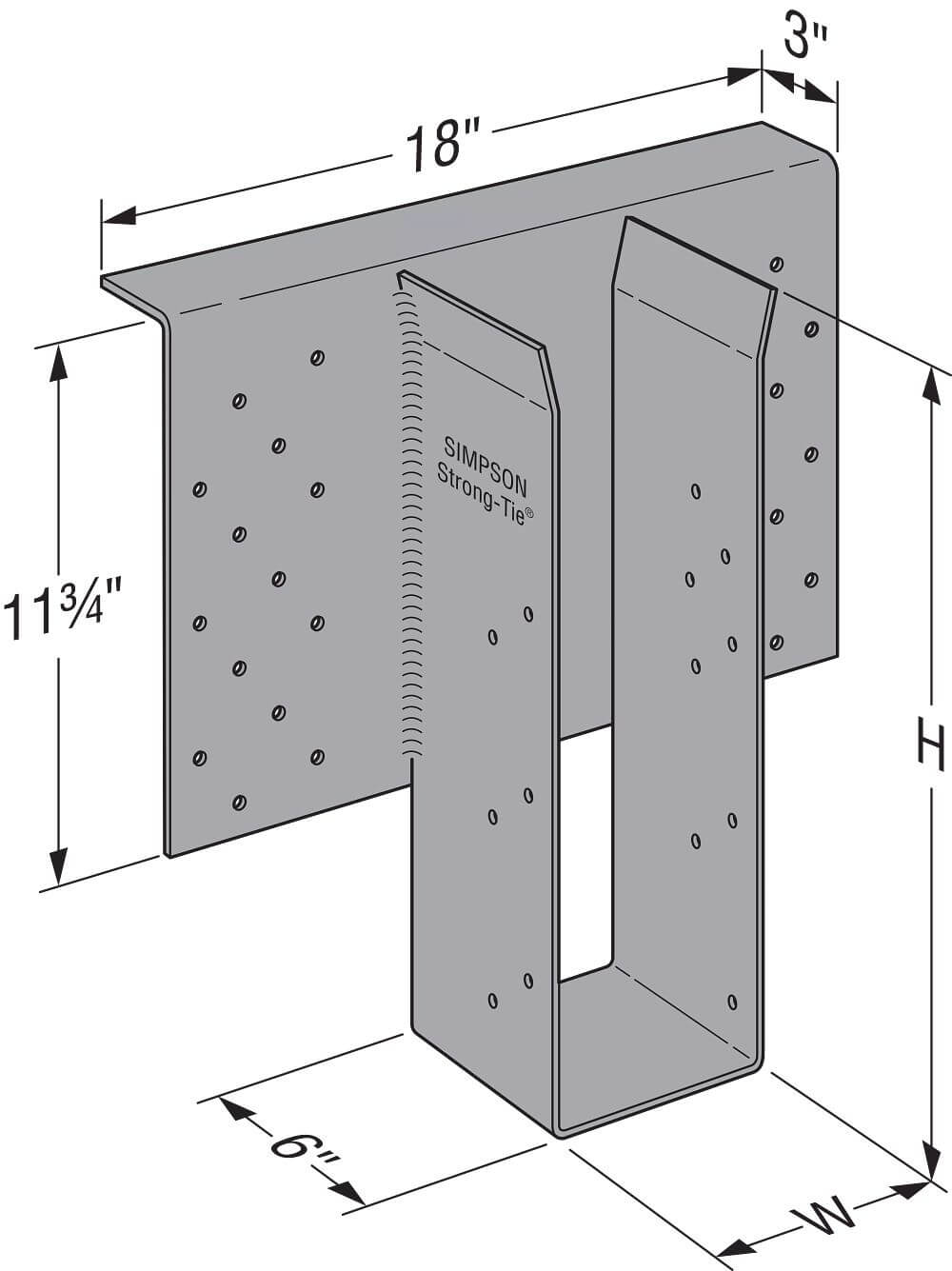

The EGQ hanger is a high-capacity top-flange connector designed for use with engineered wood beams. It utilizes Simpson Strong-Tie Strong-Drive® SDS Heavy-Duty Connector screws for higher capacity and ease of installation. The EGQ hanger has one of the highest allowable loads among all Simpson Strong-Tie hangers at nearly 20,000 lb. Available in standard SCL widths and made to specified heights.
Key Features
- Strong-Drive SDS screws are included
- May be skewed or sloped up to 45°
- Funnel Flange™ design guides the beam into place
Material
- Top flange — 3 gauge; stirrups — 7 gauge
Finish
- Simpson Strong-Tie gray paint. HDG available.
Options
- Skewed Seat
- The EGQ can be skewed a maximum of 45°
- The maximum allowable download when skewed is 16,300 lb.
- The maximum allowable uplift when skewed is 5,770 lb.
- Joist must be bevel cut for skewed seat installation
- Sloped Seat
- The EGQ can be sloped up or down a maximum of 45°
- The maximum allowable download when sloped is 15,360 lb.
- The allowable uplift when sloped is 100% of the table load
- Sloped seat installation requires an additional 14 joist screws (supplied with the connector)
- No Sloped and Skewed Combo Available
