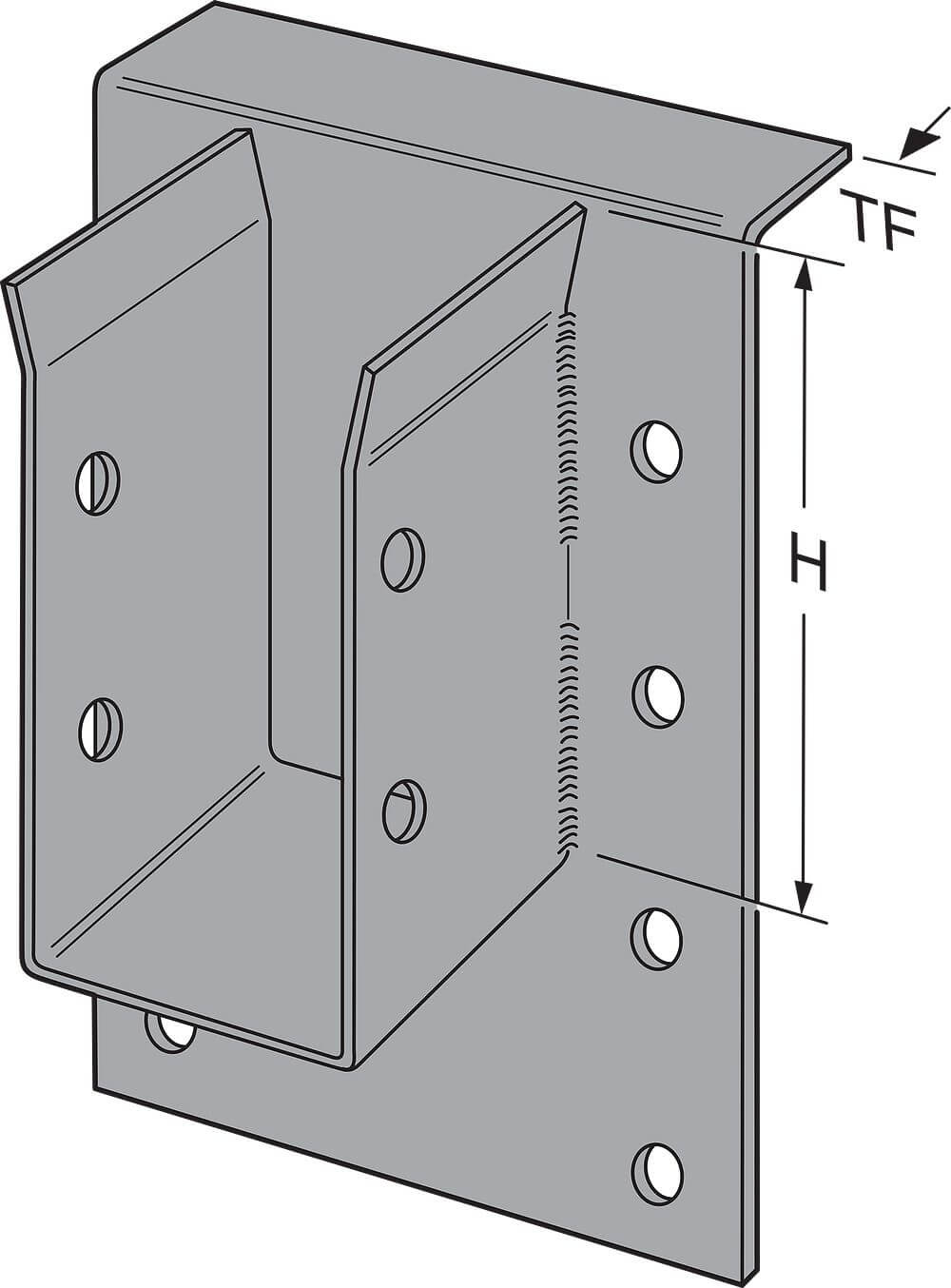

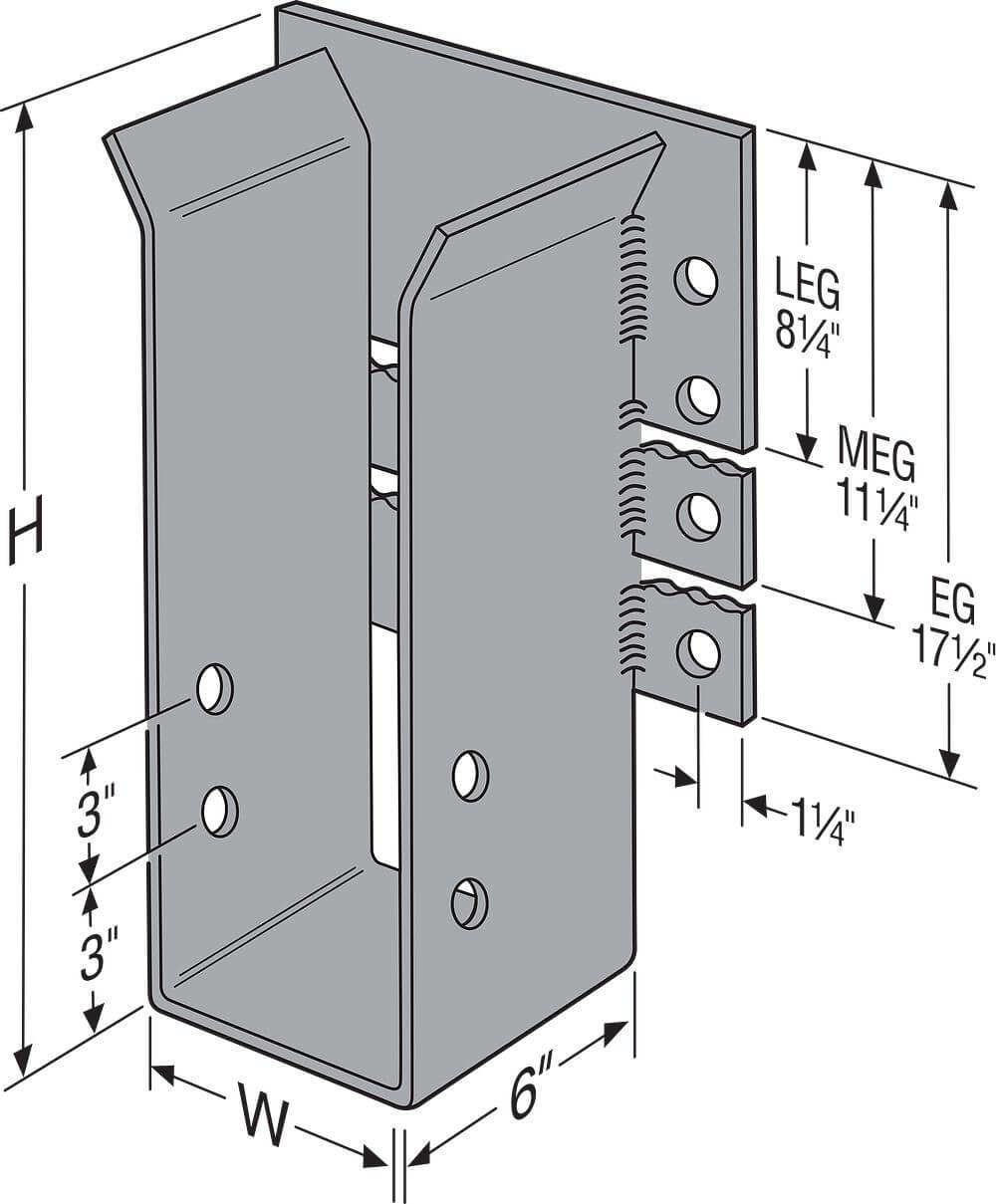

The EG hanger is a high-capacity connector designed to support engineered wood beams. This heavy end beam and glulam hanger has top flanges to capture the top chord of the beam to prevent rotation, but can be ordered without them depending on application needs. The EG hanger has one of the highest allowable loads among all Simpson Strong-Tie® hangers.
Key Features
- May be skewed or sloped up to 45°
- Funnel Flange™ design guides the beam into place
- Hanger installs with machine bolts (not supplied)
Finish
- Simpson Strong-Tie gray paint. Some products available hot-dip galvanized or special ordered in black powder coat.
Material
- Stirrup — 7 gauge; Top Flange — 3 gauge
Options
- Skewed Seat — Top-Flange Models Only
- The EG can be skewed up to 45°. The maximum allowable load is 14,250 lb.
- Sloped Seat — Top-Flange Models Only
- The EG can be sloped up to 45°. The maximum allowable load is 9,665 lb.; see illustration.
- No Sloped and Skewed Combo Available
