The ECCU is designed for column-beam connections in end-of-beam applications requiring uplift values. The seat of the column cap provides additional surface area for bearing that extends beyond one side of the column. The ECCU helps to distribute the load from the beam and provide support for the connection.
Key Features
- Certified welds for confidence in strength and loading
- Uplift loads increased for earthquake or wind loading
- Bolt spacing that meets NDS code requirements to ensure optimal performance
- Diamond holes to provide temporary fastening
Material
- ECCU 5/8, ECCU44 — 7 gauge; ECCU 3/4 — 3 gauge
Finish
- Simpson Strong-Tie gray paint
Options

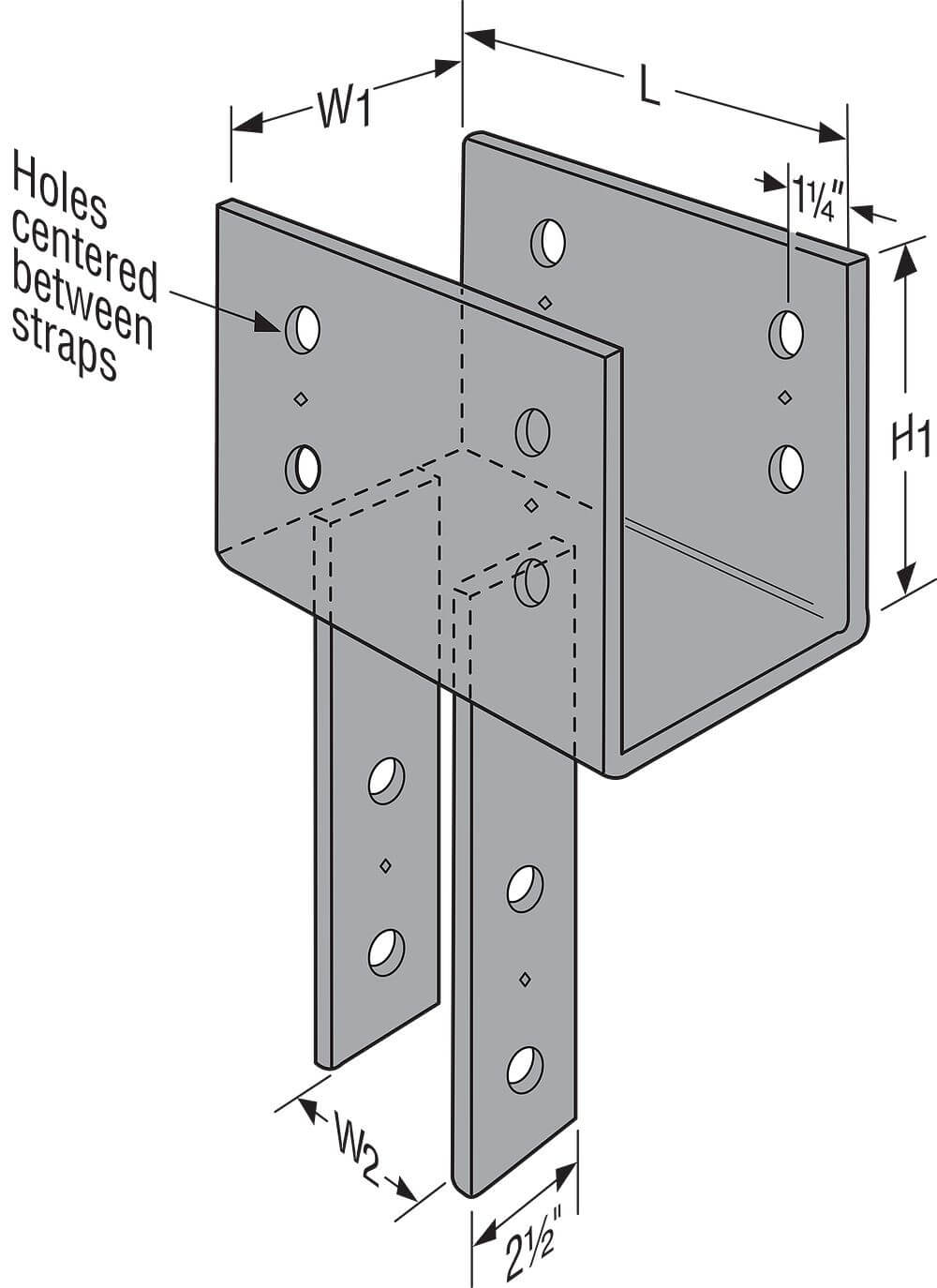

- Straps may be rotated 90° where W1 ≥ W2.
- For special, custom or rough-cut lumber sizes, provide dimensions. An optional W2 dimension may be specified. (The W2 dimension on straps rotated 90° is limited by the W1 dimension.)
